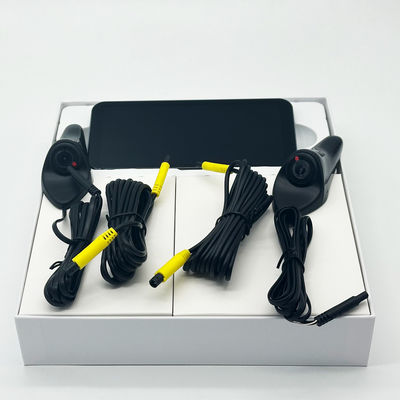

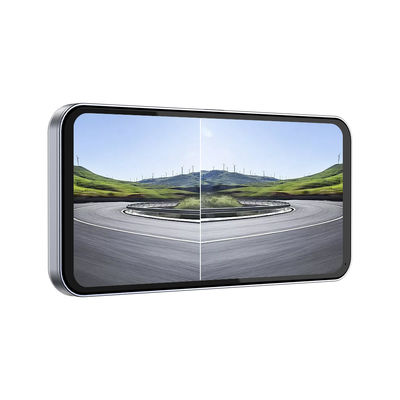

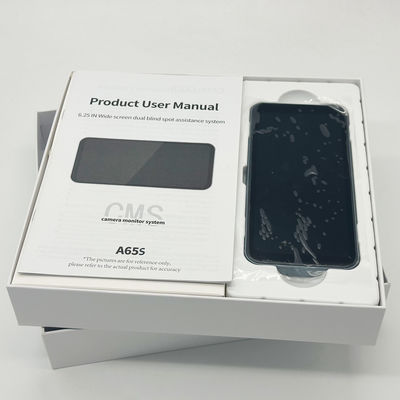

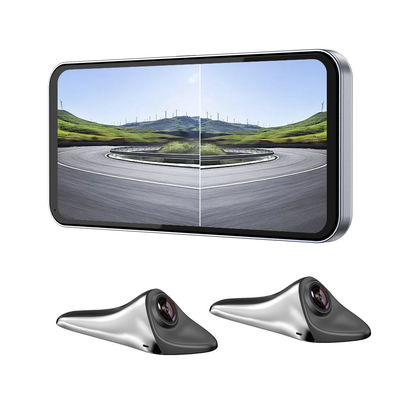

Aluminum Housing 3-way Video Inputs IPS Electronic Rearview Mirror Blind Spot Monitoring Systems
This 6.25-inch full-fit IPS electronic rearview mirror integrates a dual blind-spot camera system, 3-way video inputs, split-screen views, and recording capability. Built for trucks, buses, vans, and fleet vehicles across Europe, the Middle East, South America, and Asia, it enhances side visibility and driving safety in all weather conditions.
Product Overview
This advanced blind spot monitoring system combines a 6.25-inch full-fit IPS touch display with dual side view cameras and a durable aluminum housing. With 3-way inputs, recording, adjustable viewing angles, and split-screen modes, it is designed to enhance visibility for trucks, buses, vans, and large fleet operations.
Key Features
- 6.25" Full-Fit IPS Touch Screen - High-brightness, wide-view electronic rearview mirror
- Aluminum Alloy Housing - Premium durability for commercial vehicles
- Dual Blind Spot Cameras (Left + Right) - Adjustable viewing angle lens for precise monitoring
- 3-Way Input + Split Screen Display - Supports multiple camera combinations
- Recording Function - Continuous or triggered recording for fleet management
- Wide Voltage Support - Ideal for trucks, buses, vans, RVs, and heavy equipment
- Waterproof & Night Vision Cameras - Clear imaging in rain, fog, and low-light conditions
Applications
- Heavy-duty trucks
- Long-distance buses & coaches
- Delivery vans & commercial fleets
- Construction machinery & mining vehicles
- Logistics transport & trailer operations
- Municipal service vehicles (garbage truck, street sweeper, tanker)
Technical Specifications
| Display Size |
6.25-inch full-fit IPS touch |
| Housing Material |
Aluminum alloy |
| Input Channels |
3-way video input |
| Split Mode |
1/2 screen, dual-view, or full-screen |
| Camera Quantity |
2 × blind spot side view cameras |
| Lens Angle |
Adjustable wide-angle lens |
| Recording |
Supported |
| Voltage |
12-24V wide voltage |
| Waterproof Level (Camera) |
IP67 / IP68 (optional) |
| Night Vision |
Enhanced low-light performance |
| Video Format |
AHD / CVBS compatible |
| Installation |
Universal mount for trucks/buses |
| Operating Temperature |
-20°C ~ +70°C |
Why Choose This Product
- Purpose-built for commercial vehicles and fleet safety
- Strong aluminum structure designed for long-term durability
- Multi-camera system eliminates left/right blind spots
- Recording function enhances fleet evidence tracking
- High-clarity IPS display ensures safe operation in any environment
- Supports universal trucks, buses, and heavy-duty vehicles
Shipping Information
The Blind Spot Monitoring Systems will be shipped via a reputable courier service within 2 business days of placing the order. Shipping times may vary depending on the destination, but we aim to have the Blind Spot Monitoring Systems delivered within 5-7 business days. Customers will receive a tracking number to track their package once it has been shipped.
Frequently Asked Questions
Q1: What is your product warranty terms?
A: Generally, we provide 12 months warranty for all customers.
Q2: What is your MOQ requirement?
A: Depend on different product, small quantity order can be acceptable.
Q3: What kind of payment term can be acceptable?
A: T/T or LC is acceptable.
Q4: What is the lead time of the samples and mass goods?
A: The lead time of the sample: 5-7 days. The mass goods should be negotiated.
Q5: What is your after sales service rule?
A: Generally, we give suggestion of spare parts when customer place order. And we will provide technical support online, during the customer meet problem of installation.
VisionCarCamera Brand Advantages
VisionCarCamera has been a leader in automotive electronics for over 15 years, providing innovative and reliable solutions such as Blind Spot Monitoring Systems. Our expertise includes developing advanced camera systems, vehicle monitoring technologies, and safety devices. With OEM and ODM capabilities, we offer customized solutions for clients worldwide. Our products comply with international certifications like ISO9001, CE, and RoHS, ensuring top-quality standards. Serving markets across Europe, the United States, the Middle East, and more, VisionCarCamera is your trusted partner for cutting-edge vehicle safety systems.
